Replaces 13x6.50-6 ATV UTV Front Rear Tire Wheel

FOB Reference Price:Get Latest Price
$30.00 - $45.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Brand Name:
TZBRT/OEM
Model Number:
13x6.50-6 Tire & Wheel Rim
Place of Origin:
Zhejiang, China
Name:
13x6.50-6 Tire & Wheel Rim
Size:
13x6.50-6
Type:
Tubeless
Outside diameter:
13 inches
Inner diameter:
6 inches
Height:
6.5 inches
Net Weight:
2.75kg
Max pressure:
4.0 P.S.I
Certificate:
DOT, E4
CPNO.:
CT.00037
Supply Ability
Supply Ability:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Replaces 13x6.50-6 ATV UTV Front Rear Tire Wheel
1) carton with pallets.
2) customized color box with pallets.
3) one set G.W. is 2.8 kg.
Port
NINGBO/SHANGHAI PORT
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Description

Replaces 13x6.50-6 ATV UTV Front Rear Tire Wheel

Features:

❤Tire Smooth Tread.
❤True racing slick, maximum contact patch for maximum grip.
❤Resists punctures and abrasions.
❤Low profile design for controlled sliding and extra stability.

Specifications
Name
13x6.50-6 Tire & Wheel Rim
Size
13x6.50-6
Type
Tubeless
Outside diameter
13 inches
Inner diameter
6 inches
Height
6.5 inches
Net Weight
2.75kg
Max pressure
4.0 P.S.I
Certificate
DOT, E4

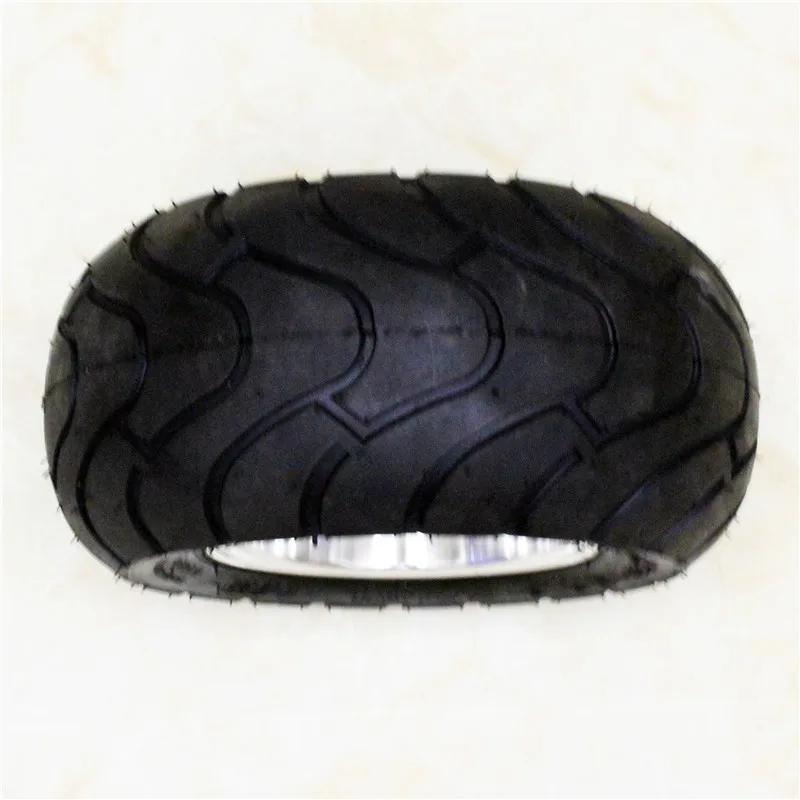

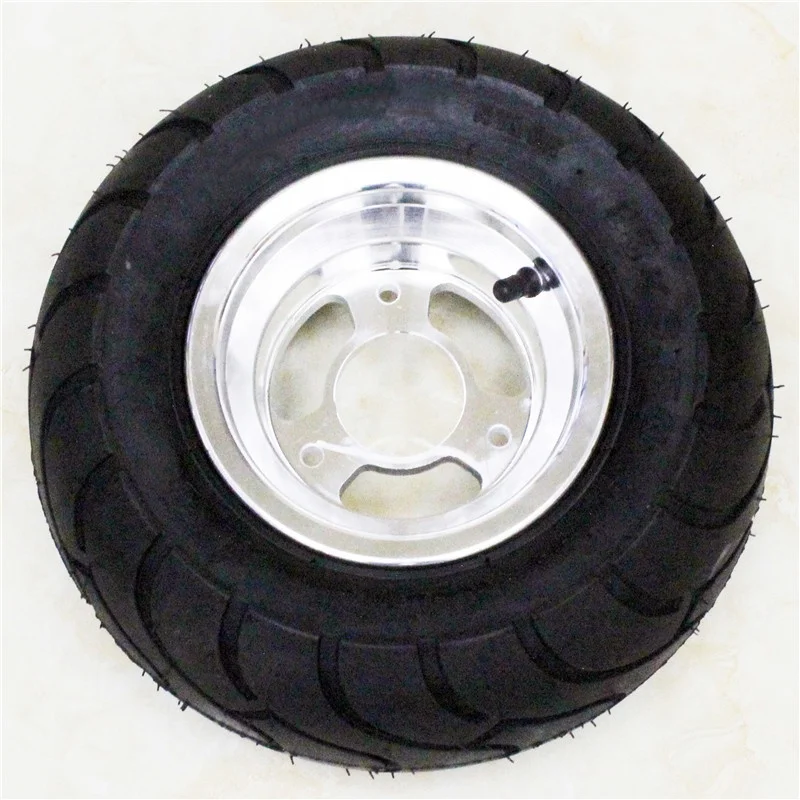

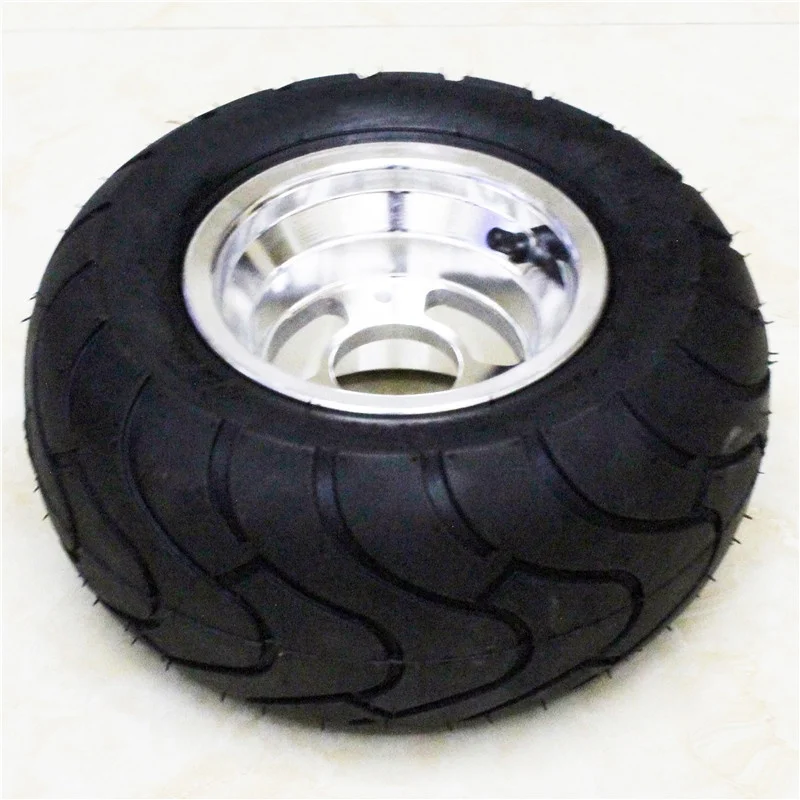

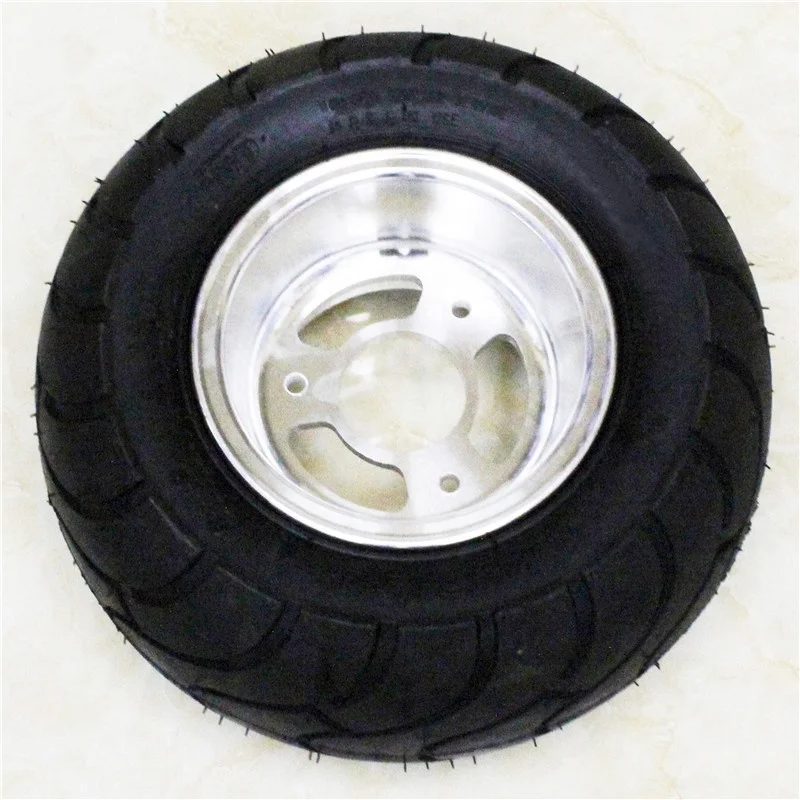

Detailed Images

Temperature problem of Go Kart tire

1. Buy a tyre pyrometer.

2. Do a session on the track and then use the pyrometer on the still hot tyres. Write down the results.

3. On the front... Using the figures you have just obtained as a guide adjust the camber of the kart. Greater negative camber for a hot outer, less for a hot inner.

4. On the rear... Raise or lower the rear tyre pressures to even the temperature across the tread. Down for a hot middle, up if the middle is cooler. Three radically different temperatures? A hot inner edge demands a little more weight transfer a hot outer edge a little less.

5. Do another session and measure with the pyrometer again.

6. This time the rears should be almost spot-on but the fronts might need a pressure tweak to correct a too-hot or too-cold middle. An almost consistent reading across the tread of each tyre tells you that you have the correct camber /caster setting on the front and optimum inflation pressure for all the tyres.

7. Use adjustments to the karts chassis set up to raise or lower the front and rear tyres overall temperature give cool tyres more work to do, hot tyres less. Don't worry about discrepancy between left and right, all circuits will work one side of the kart harder than the other, it is the difference between front and rear you need to concentrate on, they need to be roughly the same.

(NOTE a big discrepancy in the temperatures of the front and rear tyres left to right can indicate a bent chassis which is forcing one tyre unduly hard into the track surface)

8. Continue to experiment with chassis set up until the tyre temperatures are within their optimum range.

9. Write everything down, chassis settings, tyre temperatures, air temperature and track temperature (tip... Use the pyrometer on the track surface).

10. Once you are proficient with getting these base line settings, experiment with raising or lowering the tyres pressures by two or three psi to bring them on either earlier or later in a race.

Product Categories

          Go Kart Parts                             ATV/UTV Parts                                Scooter Parts                               Golf Cart Parts

         Motorcycle  Parts                           Bicycle Parts                             MINIBike Parts                       Customized Parts

Our Company

      Taizhou Xinydd Machinery Co., Ltd. was founded in 2015. We located in Binhai Industrial Area, Taizhou, Zhejiang Province. We have professional engineers and management team in the producing of the clutches for U.S.A, Russian, Europe, Brazil, and other countries. We have enough ability to satisfy different requirements from yours in this field.Who could bring a lot of international experience and professional and an unparalleled level of service for you.

Packing & Delivery
Our Service
FAQ

Q1. How to pay?
A: TT, PAYPAL, WEST UNION, DP, DA, Credit card up to you.

Q2. What is your term of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q3. How about your delivery time?
A: Generally, it will take 24-48 hours after receiving your advance payment. Some is one week. The specific delivery time depends on the items and the quantity of your order.

Q4. How to produce customized products?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5. How to get a sample?
A: We can supply the sample if we have ready parts in stock.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter                 where they come from.
